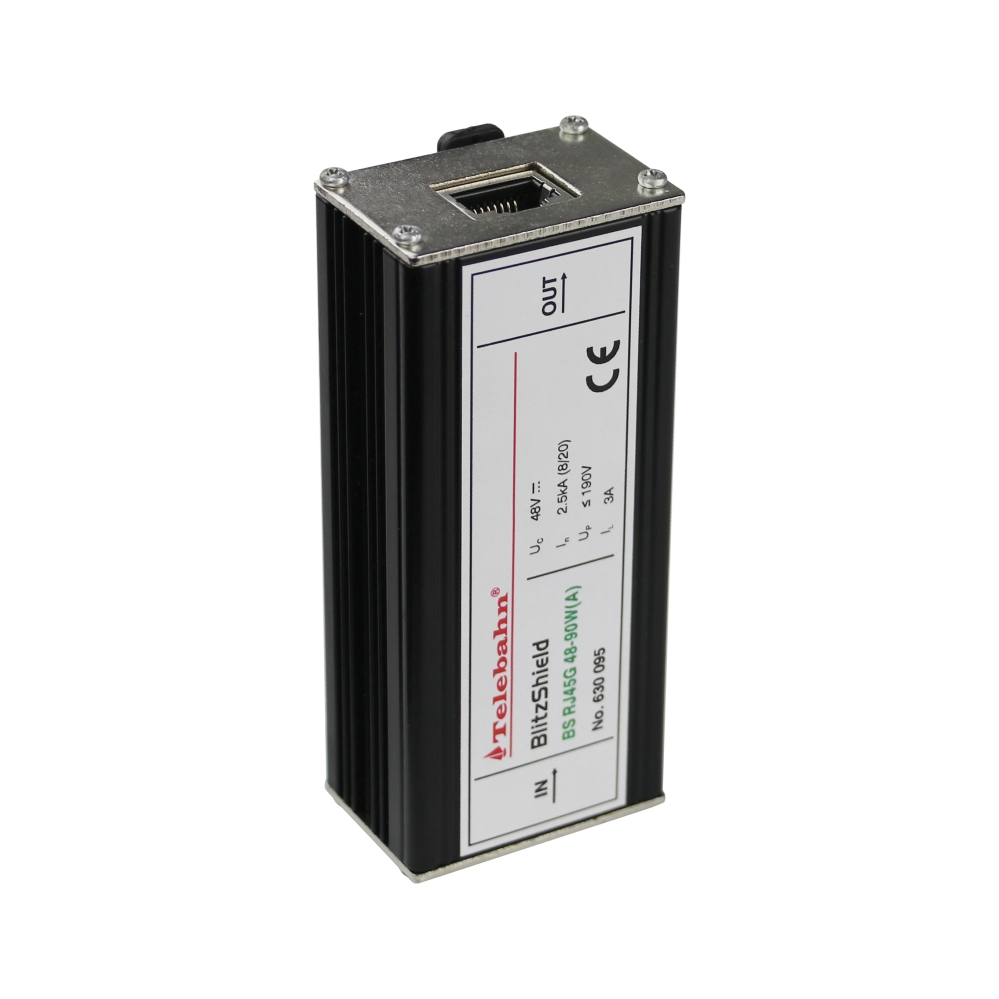

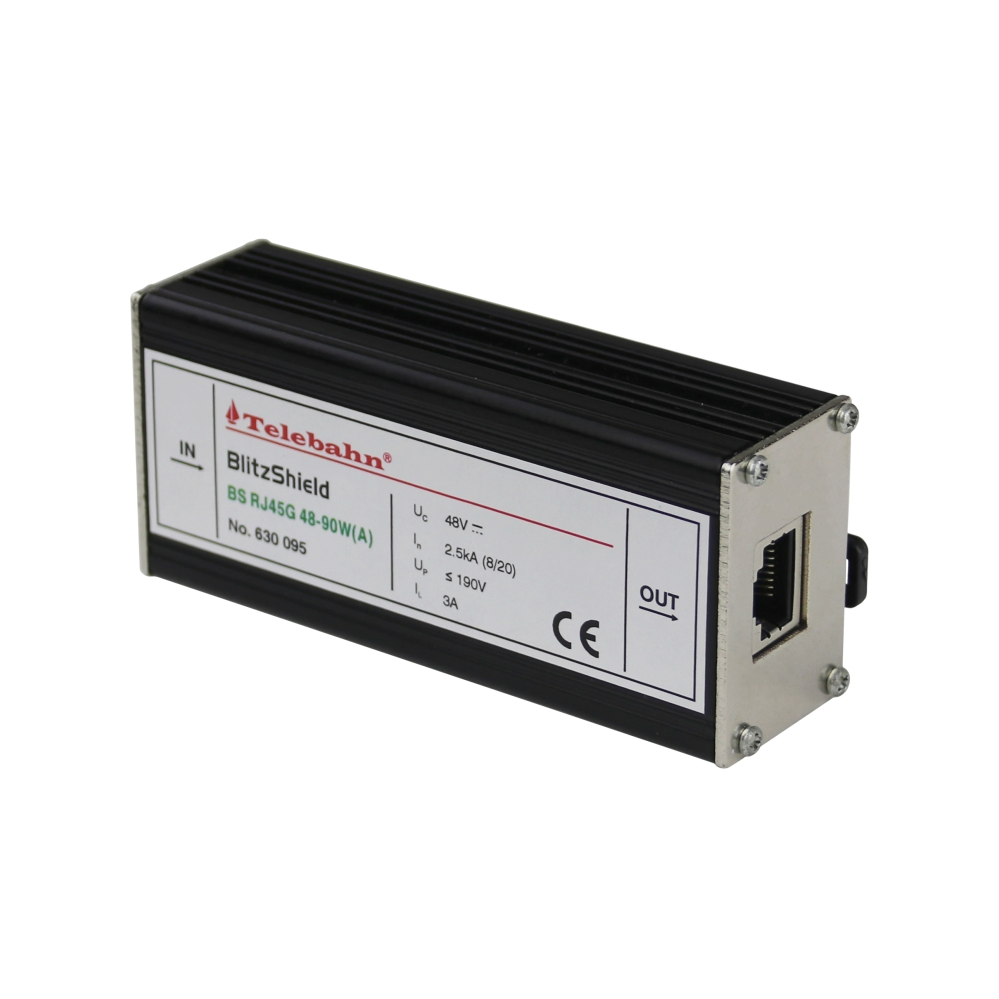

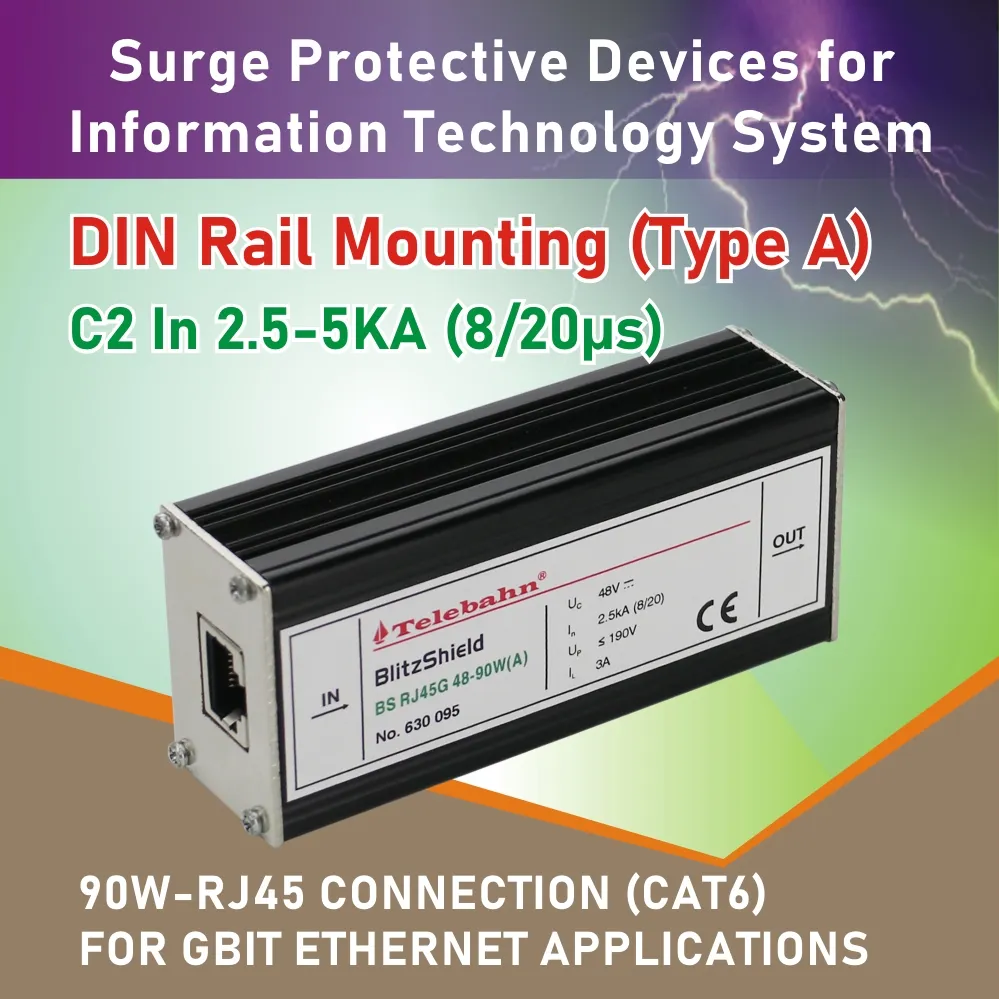

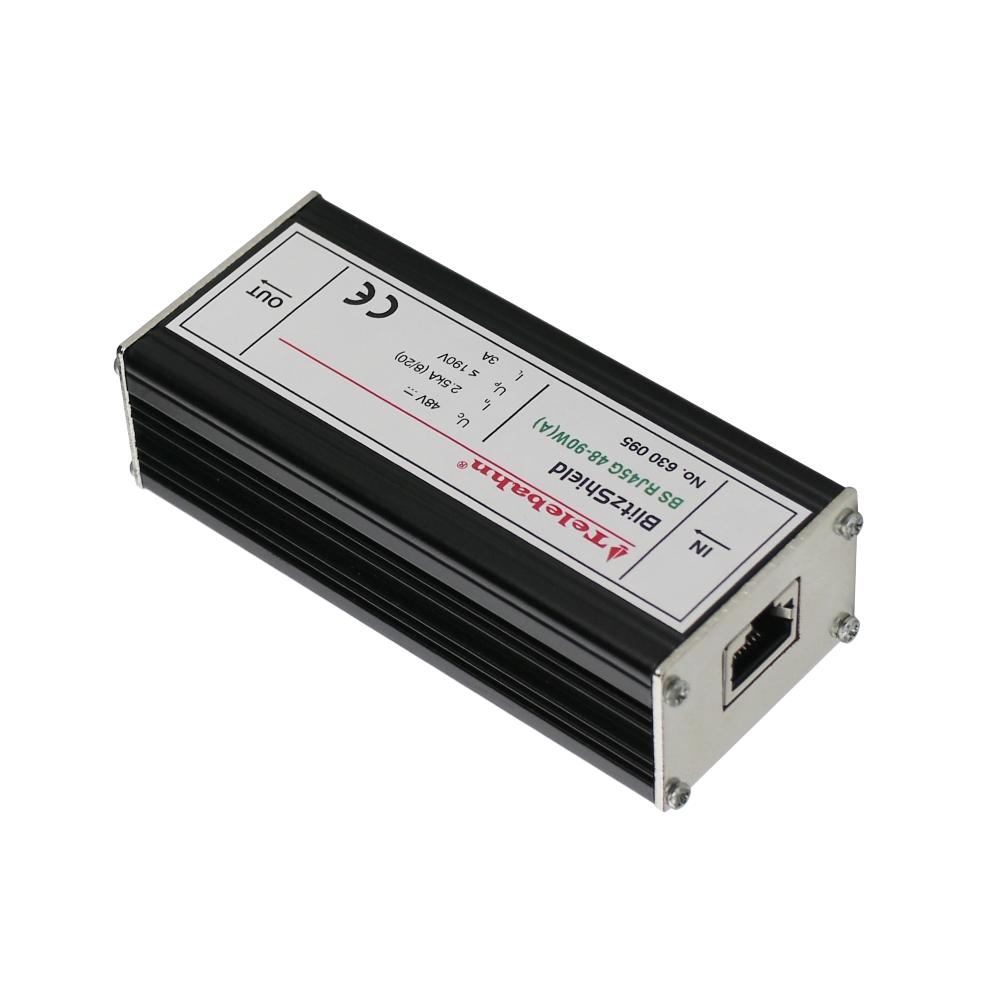

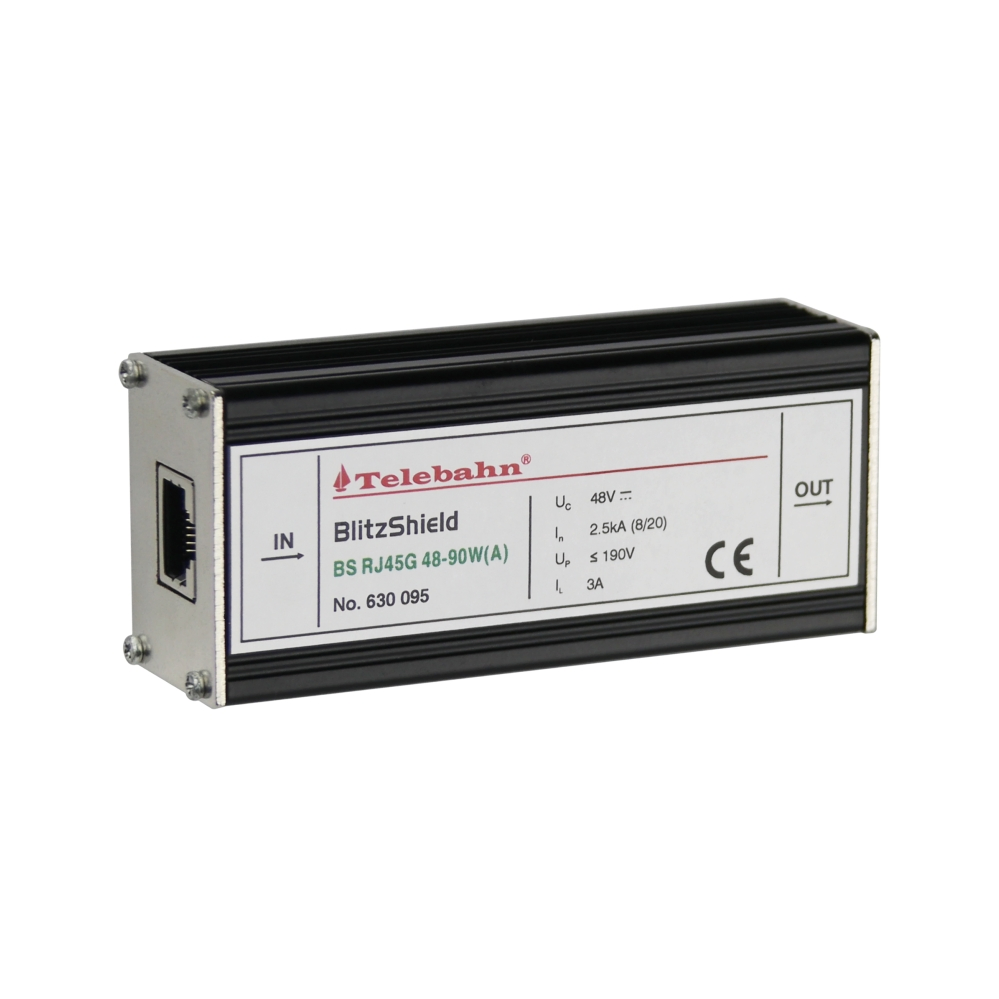

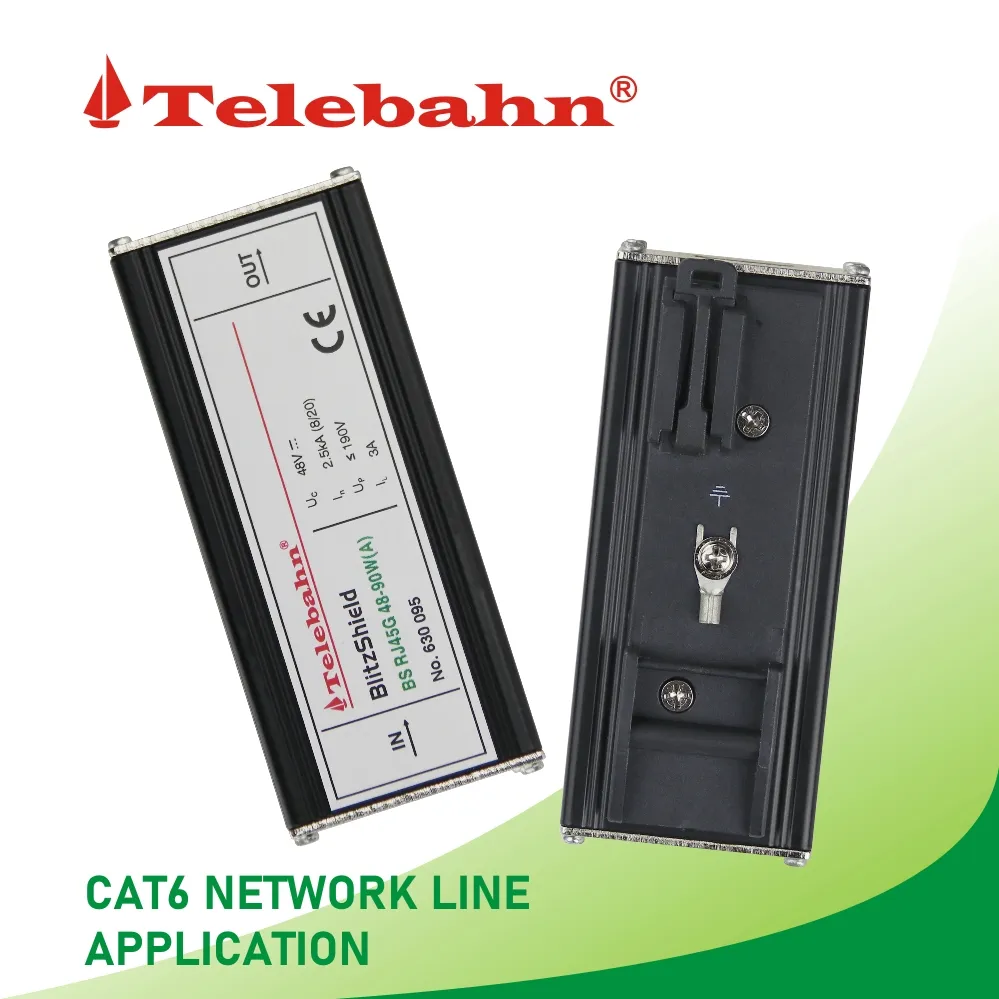

RJ45 CAT6 Ethernet Surge Protector 48V 90W 1000Mbps Poe Surge Arrester SPD Custom Logo for Networks
Product Description
📋
Basic Info
Model NO.
BS RJ45G 48-90W(A)
Installation
Tandem Arrester
Application
Single Port 48V 90W RJ45 Ethernet Surge Protector
Size
Medium
Operation Voltage
Low Voltage
Shape
Monobloc Design
Material
Aluminum Alloy
Certification
ROHS, ISO9001, CE
Max. Continuous D.C. Voltage
57V
Max. Data Rate
1000mbit/S
Weight
135.2g
Mounting
35mm DIN Rail, En 60715
Warranty
3 Years
Degree of Protection
IP20
Origin
China
HS Code
8536300000
🛡️
Protection Introduction
📊
Technical Specifications
| Parameter | BS RJ45G 48-90W(A) Details |
|---|---|
| Art.-No. | 630095 |
| Application | Gigabit Ethernet Surge Protector PoE |
| Nominal voltage [Un] | 48V |
| Max. continuous d.c. voltage [Uc] | 48V |
| Max. continuous a.c. voltage [Uc] | 34V |
| Max. pair-pair PoE voltage [Uc] | 57V |
| Nominal current [IL] | 3A |
| D1 Lightning impulse current (10/350μs) | 0.5kA (per line) |
| C2 Nominal discharge current (8/20μs) | 0.15kA (line-line), 2.5kA (line-PG) |
| Voltage protection level at In C2 [Up] | ≤ 190V (line-line), ≤ 600V (line-PG) |
| Transmission frequency [fG] | 250MHz |
| Max. data transmission rates | > 1000Mbits/s |
| Operating temperature | -40°C...+80°C |
| Connection (input/output) | RJ45 shield socket |
✨
Key Highlight Features
01Ideally suited for retrofitting, protection of all lines.
02Suitable for Communication, Data Networks, and CCTV systems.
03Cat.6 channel (class E) and 1000Mbps (1G) compatible.
04Power over Ethernet IEEE 802.3 compliant (up to PoE++ / 4P PoE).
05Quick response, high transmission speed, and low signal attenuation.
0635mm standard DIN rail mounting for easy installation.
07High load power capacity reaching up to 90W.
🔍

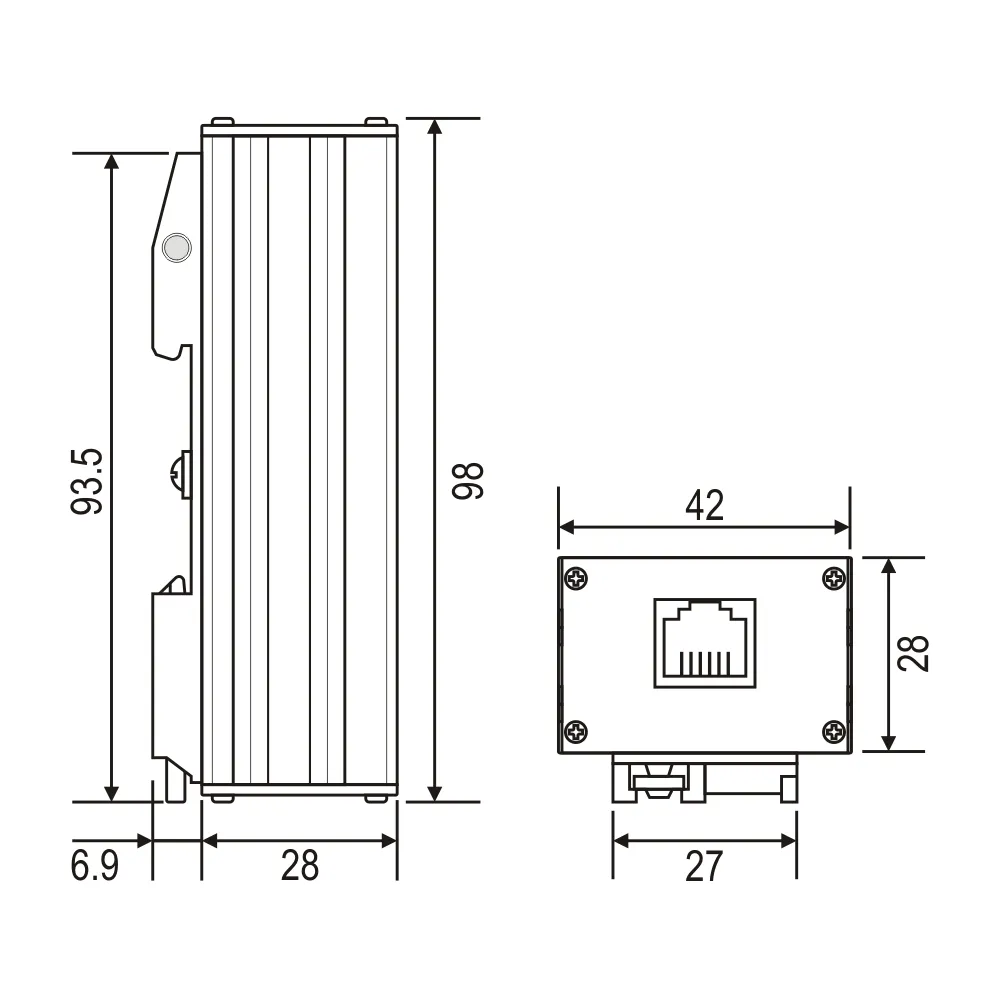

Reports & Dimensions
⚙️

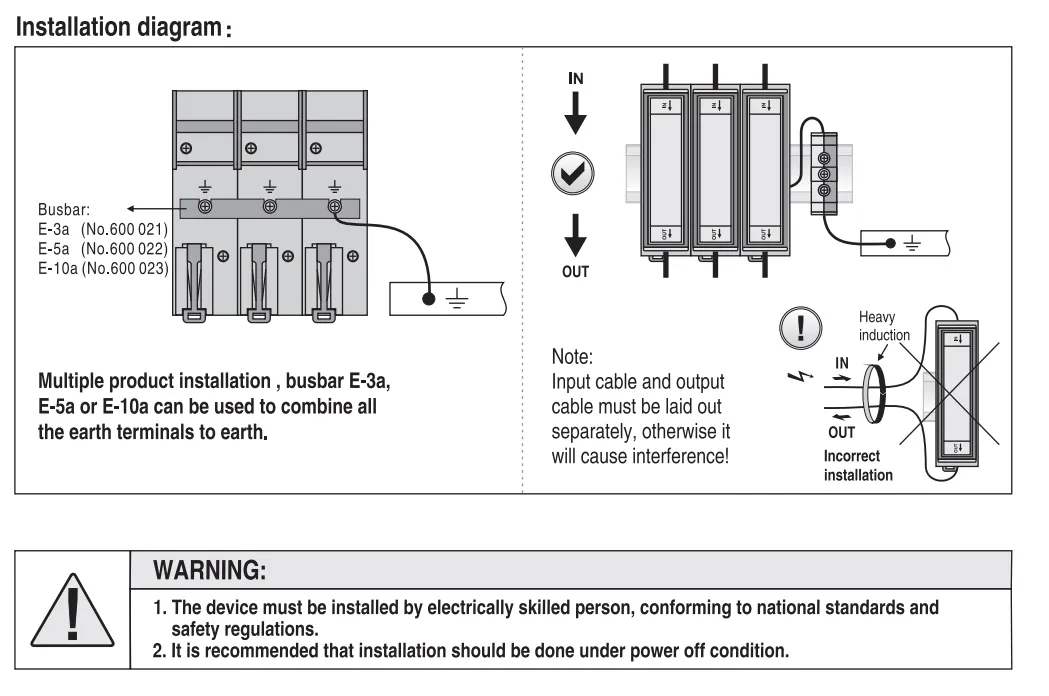

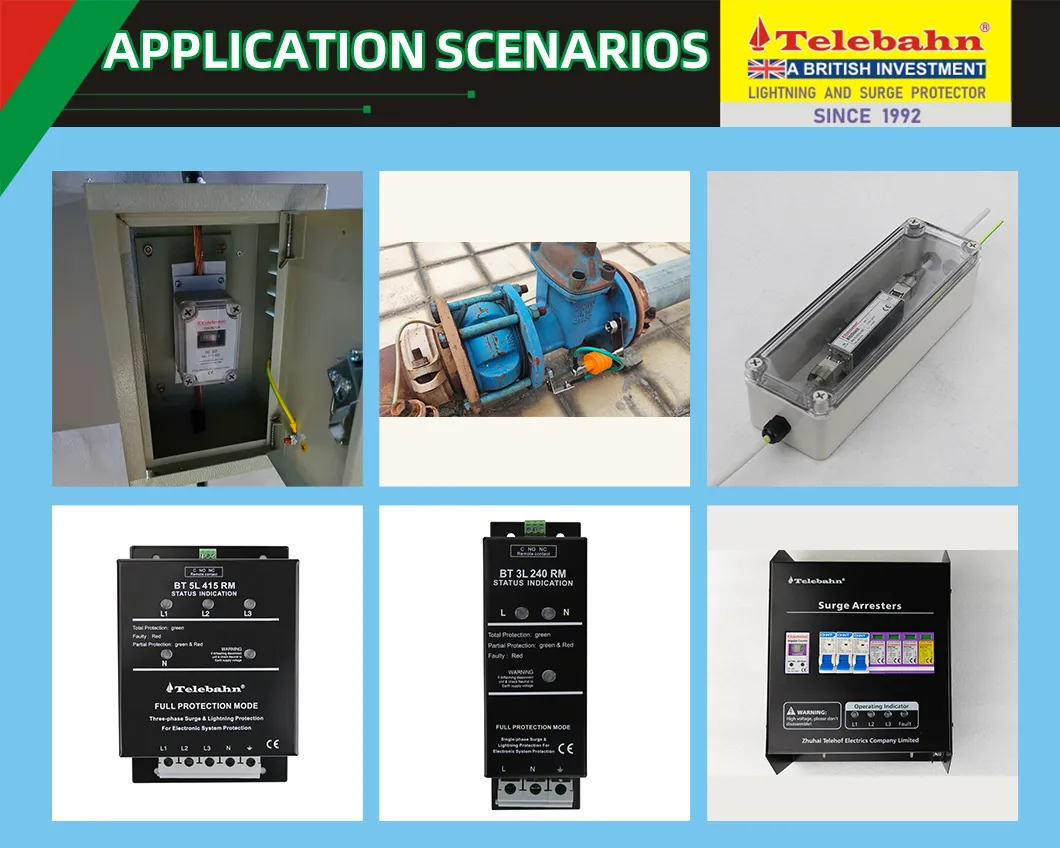

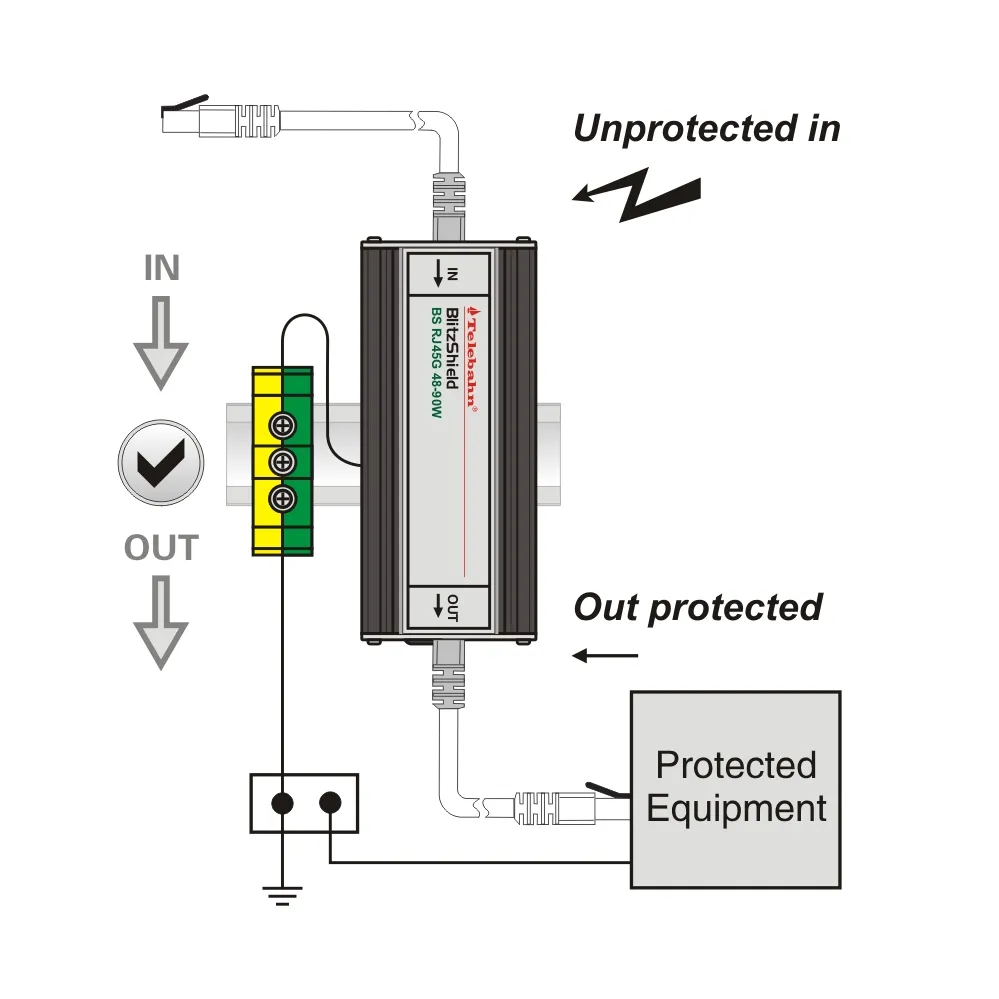

Installation & Scenarios
🏢

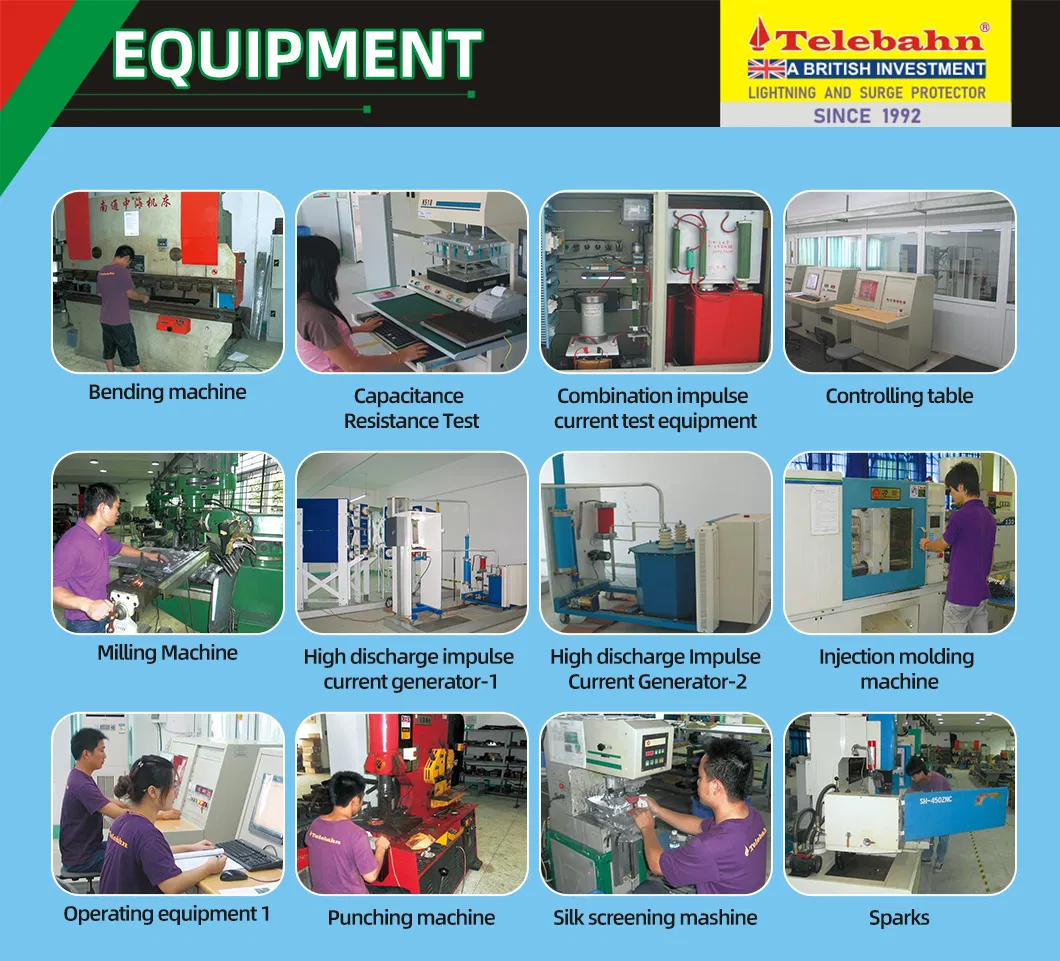

Manufacturing & Quality
📦
Packaging & Shipping
Frequently Asked Questions (FAQ)
Q1: What data transmission speeds does this surge protector support?
A: This model supports 10/100/1000Mbps Gigabit Ethernet data rates.
Q2: Is this device compatible with PoE systems?
A: Yes, it is compliant with IEEE 802.3 standards and supports PoE, PoE+, and PoE++ (up to 90W / 4P PoE).
Q3: Which cable categories can I use with this protector?
A: It is fully compatible with CAT5, CAT5e, CAT6, and CAT6a structured cabling systems.
Q4: How do I install the BS RJ45G 48-90W(A)?
A: The device features a monobloc design designed for mounting on a standard 35mm DIN rail (EN 60715).
Q5: What is the operating temperature range?
A: It is designed to operate in extreme environments ranging from -40°C to +80°C.
Q6: What is the degree of protection provided by the housing?
A: The aluminum alloy housing provides an IP20 protection rating.
